Amazing Connectivity
EasyPIC v7 is all about connectivity. Having four different connectors for each port, you can connect accessory boards, sensors and your custom electronics easier then ever before.
mikroProg on board
Powerful on-board mikroProg programmer and In-Circuit debugger can program and debug over 350 microcontrollers. You will need it, whether you are a professional or a beginner.
Dual power supply
EasyPIC v7 is among few development boards which support both 3.3V and 5V microcontrollers. This feature greatly increases the number of supported MCUs.It’s like having two boards instead of one!
mikroBUS™ support
Two innovative new mikroBUS sockets allow you to use dozens of Click accessory boards with almost no hardware adjustments. Adding new functionality to your device was never so easy
Add-On Boards
Microchip Microcontrollers
Physical Input/Output
Ports Terminals

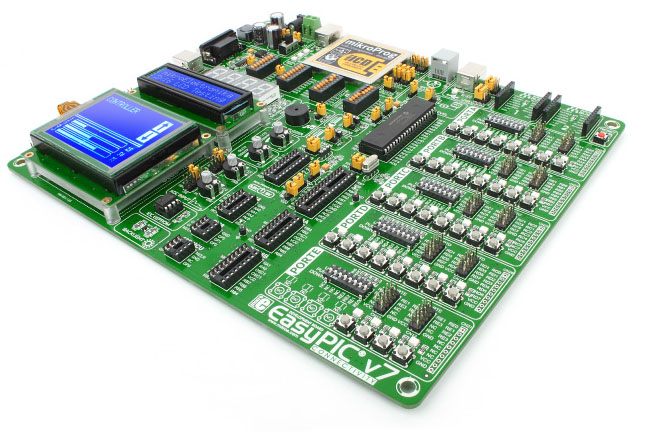

What is EasyPIC v7
EasyPIC v7 is the seventh generation of our famous PIC development board. It is the product of accumulated knowledge over the past 10 years, and it’s state of the art of design, functionality and quality. It is loved by beginners and hobbyists, as well as professionals, and used in education and development by thousands. Board comes with PIC18F45K22 device.
It’s a big difference
mikroProg on board
What makes this board so unique is that it comes with powerful on-board mikroProg programmer and In-Circuit Debugger, capable of programming more than 350 microcontrollers. This makes development with EasyPIC v7 a whole new experience. Whether you are just a beginner, or a well-trained professional, this remarkable feature is an irreplaceable advantage.
New modules on your demand
Buzzer, Temp sensors, EEPROM
EasyPIC v7 has modules for all kinds of development. Beside standard DS1820 digital thermometer we introduced LM35, analog temperature sensor. Piezo buzzer will help you test your sound signalization, and you can use I2C EEPROM to store config data.
PORTs, buttons and LEDs
We have put a lot of thought in making this EasyPIC so much better than it’s predecessor. With better organization ports are now logically grouped and contain related buttons and LEDs. Tri-state switches simplify settings of pull up and pull down resistors on each pin.
LCD, GLCD & 7seg displays
We have returned 4-digit 7seg display to EasyPIC v7 so you can now build applications for LCD, GLCD and 7seg, all on the same board! We have organized them in a clean and elegant way, thus increasing their usability.
Supported Devices
EasyPIC v7 currently supports over 350 Microchip microcontrollers. Browse through the list of supported devices or use the search box to filter out the microcontrollers or families you are interested in. For example, by typing “PIC18” will leave only PIC18F, PIC18LF, PIC18FJ and PIC18FK microcontrollers in the list. More detailed search string will leave more narrow list of devices in the list box.
